SPECIFICATIONS

Application: Management airports supermarkets

Battery capacity: 1760 mAh

Battery life: 4 Years

Brand Name: NoEnName_Null,DX-SMART

Chipset: Dialogue 14531

Hign-concerned Chemical: None

Model Number: DX-CP28 Beacon,DX-CP28 Beacon

Power supply: Replaceable button battery

Supplier Type: Original manufacture

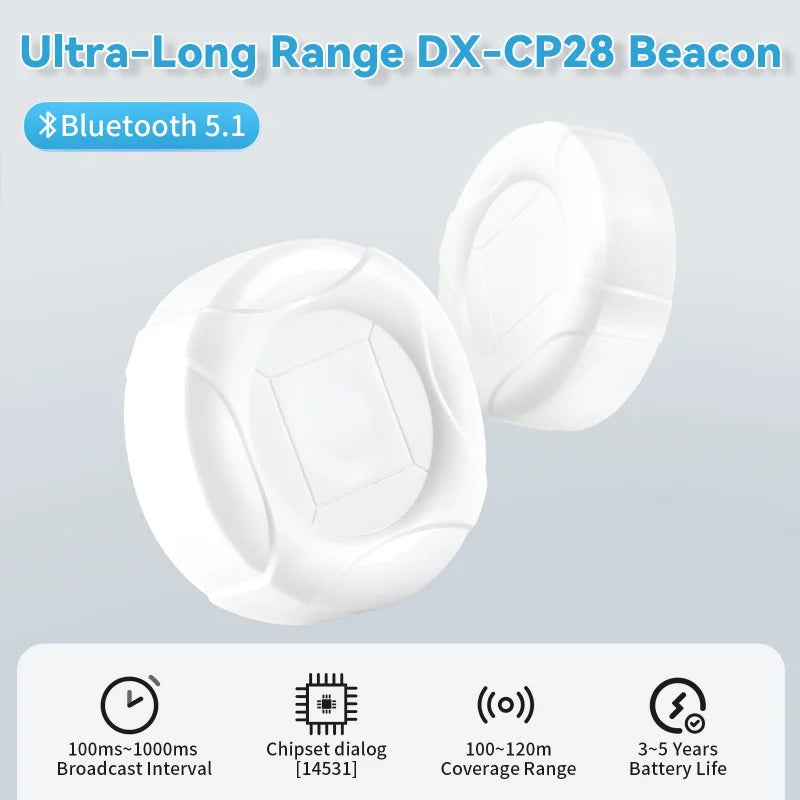

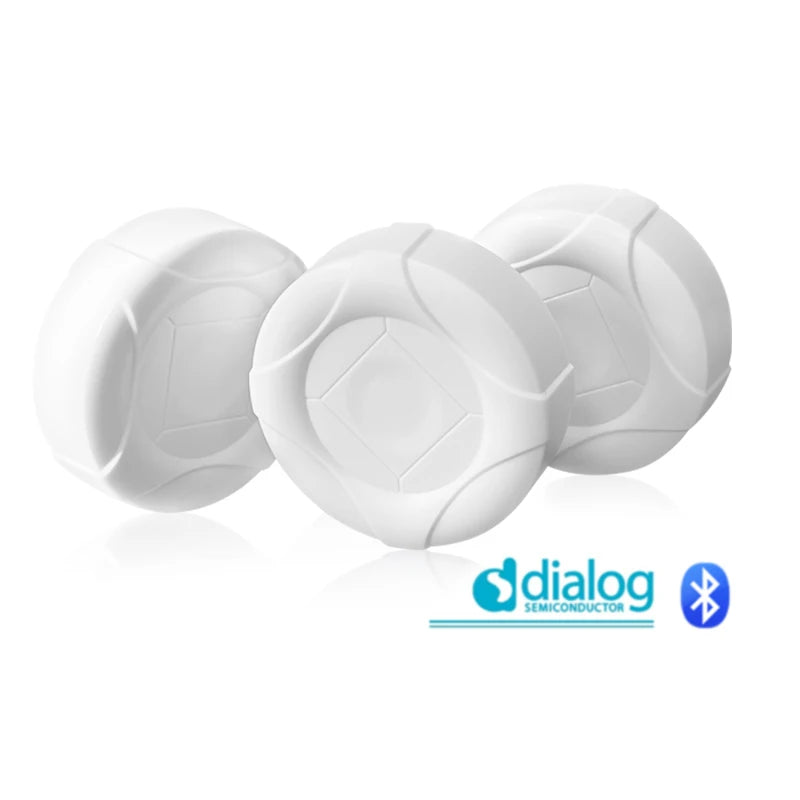

DX-CP28 Proximity Navigation Beacon is one of your best choices for indoor navigation, push notification, and location tracking solutions.

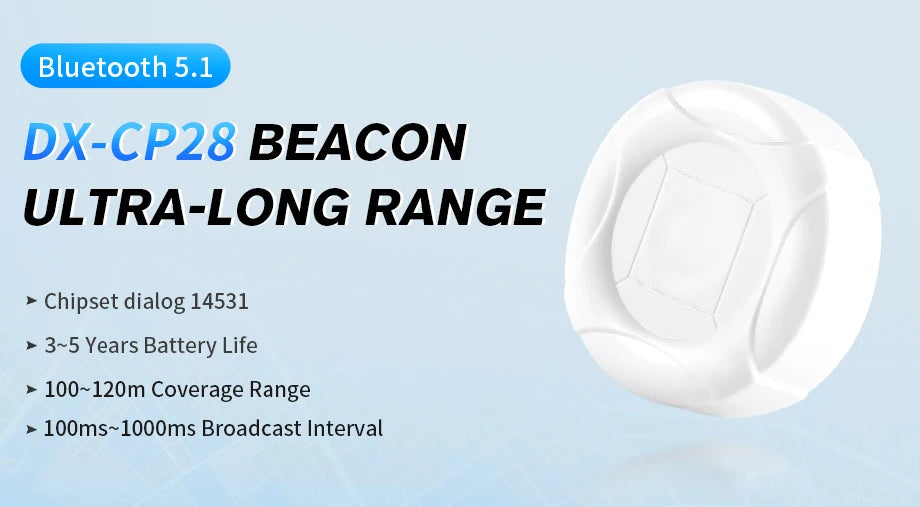

The DX-SMART CP28 is a new generation beacon that loaded Bluetooth 5.1. CP28 has a smart rotatable mechanical design for the housing that makes the coin battery replaceable grade combination perfectly. Moreover, E9 can be 3M adhesive.
CP28 has a broadcast distance reaching up to 120 meters.

You can easily achieve a complete planning view from start to finish in exhibitions, museums, libraries, commercial complexes, and more with accurate and real-time directions.

CP28 advertises standard iBeacon and Eddystone (UID,URL,TLM) data packet simultaneously. The user can configure the DX-SMART IBeacon via configuration app DX-SMART+ as well.

Tech. support:

Demo APP and SDK are provided for developers.

Features

What is Beacon?

The DX-CP28 Bluetooth beacon is a low-power Bluetooth product developed by Shenzhen Daxia Longque Technology Co., Ltd. It is dedicated to asset management, indoor positioning, and advertising push.

It follows the Bluetooth BLE 5.1 specification and supports both iBeacon and Eddystone protocols. With a circular design and a PC material shell, it is small and exquisite, assembled by a rotating buckle for easy battery replacement, thus extending battery life. SDK and technical services are available, and it can be OEM or ODM according to customer requirements.

Application Scenarios

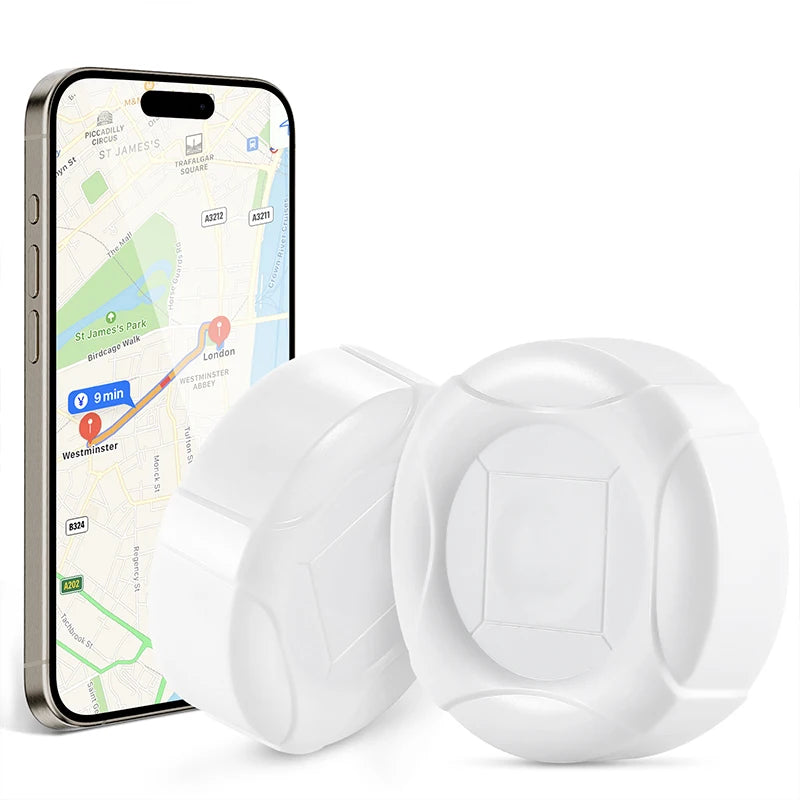

1. Indoor Navigation
:

Optimal wayfinding selection

Quick destination search

Route planning and optimization

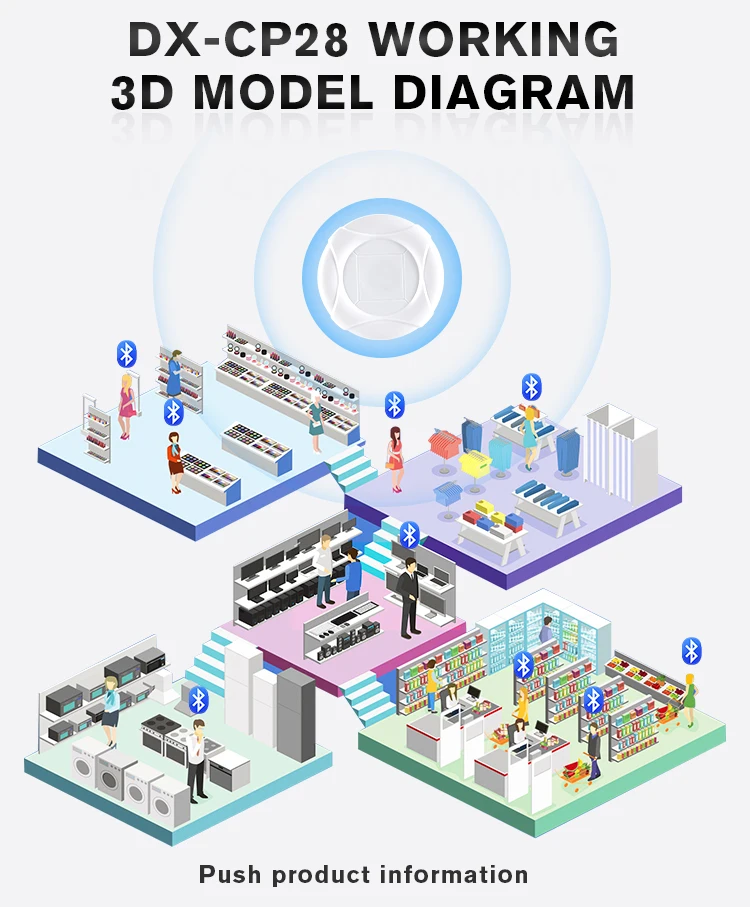

2. Push Notification

Proximity marketing

Beneficial info promo

Customer engagement maintenance

3.Location Tracking

Personnel on site positioning

Location info collecting

Data record and management

Functional Specifications
Item	Description
Advertising Format	GATT,iBeacon, Eddystone
Configuring Method	DX-SMART Beacon SDK compiled app (e.g.DX-SMARTBeacon app)
Advertising Interval	Range from 100 ms to 1000 ms
Max Number of Broadcast	6 Slots configurable advertising frames
Default Broadcast Interval	iOS 7.0+, Android 4.3+
Advertising Distance	Up to 112.2m
Firmware Upgrading	OTA (upgrade firmware over the air)

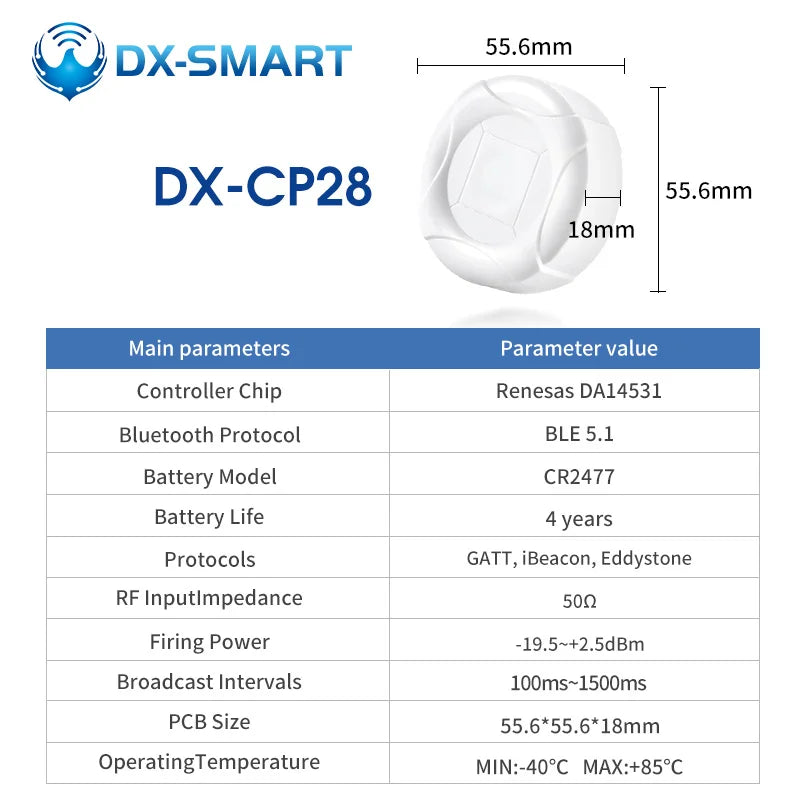

Product Specifications
Item	Description
Chipset	DA14531
Bluetooth Version	Bluetooth 5.1(BLE)
TX Power	-19.5 dBm to +2.5 dBm
Antenna	PCB Onboard antenna
Power Supply	CR2477 button battery (replaceable)
Battery Lifre	4 Years(Battery capacity=880mAh*2)
Material	ABS plastic
Color	White
Size	61(L)mm * 61(W)mm * (H)18mm
Operating temperature	-40℃ to +85℃

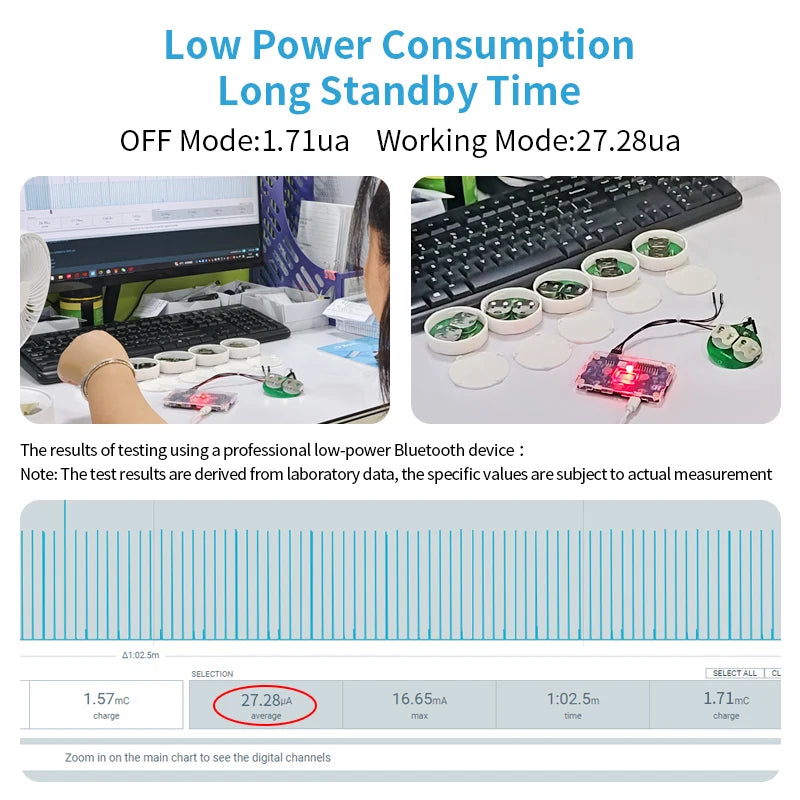

Power-off state	1.6ua
Operating state	24.87ua
